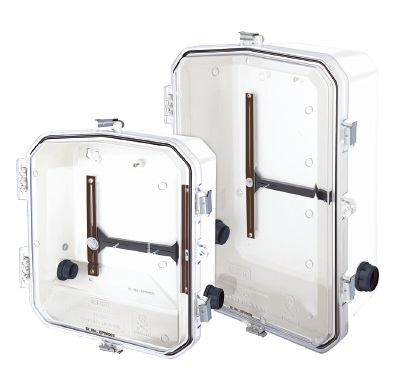

IP 66 Thermoplastic Enclosure
The IP 66 Thermoplastic Enclosure is manufactured using premium polycarbonate material to provide lightweight yet highly durable protection for electrical and industrial applications. These enclosures are available with standard or transparent lids and feature a light grey RAL 7035 finish, making them suitable for demanding indoor and outdoor environments.
Applications
These thermoplastic enclosures are ideal for protecting electrical and electronic equipment in harsh environments.
- Electrical & Automation: Enclosures for panels, breakers and electrical components.
- Outdoor Installations: Weatherproof protection for lighting, signalling and telecom equipment.
- Industrial: Protects PLCs, sensors and junction systems.
- Renewable Energy: Ideal for solar and wind energy equipment.
- Marine: Corrosion-resistant protection for marine electrical systems.
- Agriculture: Suitable for irrigation and field monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Polycarbonate |
| Ingress Protection | IP66 |
| Flammability | UL 94 V0 |
| Temperature Range | -40°C to +100°C |
| Sr. No. | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 1 | 80 | 82 | 55 |
| 2 | 80 | 120 | 85 |
| 3 | 120 | 200 | 90 |
| 4 | 230 | 300 | 110 |
