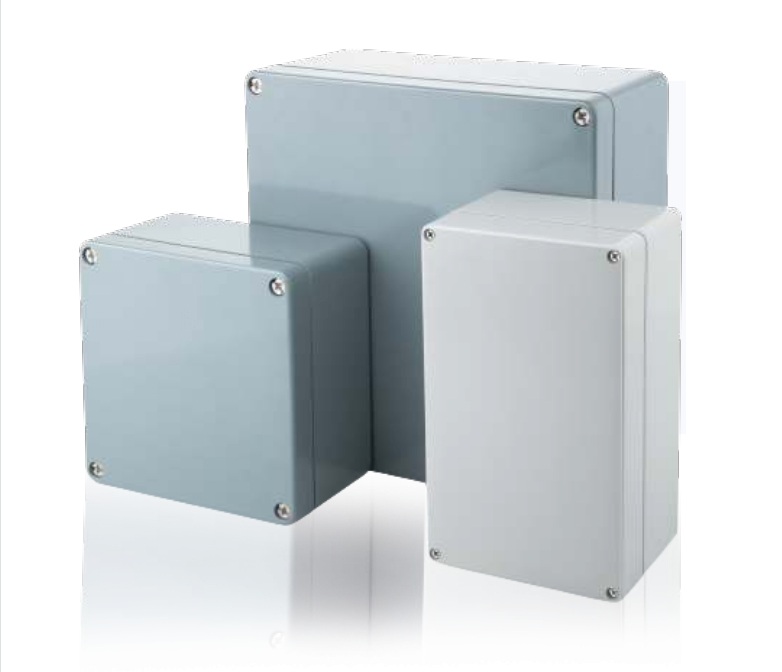

Polyester IP 65/66/67 Enclosure
The Polyester IP 65/66/67 Enclosure is manufactured from premium Glass Fiber Reinforced Polyester (GRP) and is designed for both indoor and outdoor industrial applications. Certified with IP65, IP66, and IP67 protection, these enclosures offer exceptional mechanical strength, thermal stability, and weather resistance. They are ideal for protecting electrical and electronic components such as PCBs, cable glands, connectors, membrane keypads, terminal rails, and switches.
Applications
These high-performance enclosures provide reliable protection in demanding industrial and outdoor environments.
- Industrial Control Systems: Protects factory control panels and automation equipment.
- Outdoor Installations: Safeguards power distribution boxes and lighting systems.
- Telecommunication: Shields outdoor telecom equipment and junctions.
- Utility Infrastructure: Suitable for water, gas, and electrical distribution networks.
- Solar Power Systems: Protects inverters, combiner boxes, and electrical controls.
- Marine & Offshore: Excellent resistance to moisture and corrosive environments.
- Automation Systems: Ideal for industrial control and instrumentation applications.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Glass Fiber Reinforced Polyester (GRP) |
| Ingress Protection | IP65 / IP66 / IP67 (EN 60529) |
| Impact Resistance | 7 Joule (EN 50014) |
| Temperature Range | -40°C to +100°C |
| Flammability | Self Extinguishing, UL-94 V0 |
| Protective Insulation | Fully Insulated to VDE 0100 |
| Dielectric Strength | > 10 kV/mm |
| Toxicity | Halogen Free |
| Surface Resistance | - |
| Colour | Silver Grey RAL 7001 / Black RAL 9011 / Light Grey RAL 7035 |
| Sr. No. | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 1 | 55 | 55 | 37 |
| 2 | 55 | 55 | 59 |
| 3 | 80 | 75 | 75 |
| 4 | 110 | 75 | 56 |
| 5 | 122 | 120 | 90 |
| 6 | 220 | 120 | 90 |
| 7 | 160 | 160 | 90 |
| 8 | 260 | 160 | 90 |
| 9 | 255 | 250 | 120 |
| 10 | 255 | 250 | 160 |
| 11 | 400 | 250 | 120 |
| 12 | 400 | 250 | 160 |
| 13 | 360 | 360 | 91 |
| 14 | 405 | 400 | 121 |
