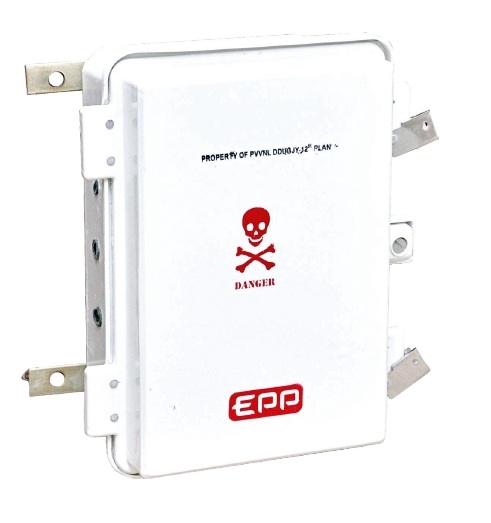

SMC Distribution Box / SMC Service Connection Box
The SMC Distribution Box / SMC Service Connection Box is manufactured using high-quality Sheet Molding Compound (SMC) and is specially designed to house electrical service connections safely and securely. These enclosures offer outstanding durability, weather resistance, and electrical protection, making them ideal for residential, commercial, industrial, and utility applications.
Applications
These service connection boxes are engineered for reliable electrical distribution and protection in various environments.
- Residential: Suitable for housing electric meters, switches, and service connection points.
- Commercial & Industrial: Protects service connections and electrical terminals in commercial and industrial installations.
- Outdoor Installations: Designed for outdoor service points with excellent weather and environmental resistance.
- Utility & Energy Metering: Widely used for electricity, water, and gas metering systems.
Product Features
Manufactured from premium SMC material, these distribution boxes provide excellent electrical insulation, UV resistance, corrosion resistance, high mechanical strength, and a long service life. Available in multiple sizes with busbar, connector, and spring-loaded configurations to suit various electrical distribution requirements.
| Code No. | Internal Dimensions (H × W × D) mm | Application | Remarks |
|---|---|---|---|
| EPP DB 2525 | 250 × 250 × 160 | 1 Ph / 3 Ph Dist Box | Busbar / Connector Type |
| EPP DB 2822 | 285 × 225 × 120 | 1 Ph Dist Box | Busbar / Connector Type |
| EPP DB 3020-01 | 300 × 200 × 130 | 1 Ph / 3 Ph Dist Box | Busbar / Spring Loaded Type |
| EPP DB 3041 | 300 × 418 × 120 | 3 Ph Dist Box | Busbar / Connector Type |
| EPP DB 3527 | 350 × 270 × 210 | 3 Ph Dist Box | Busbar / Spring Loaded Type |
| EPP DB 3922 | 390 × 225 × 140 | 1 Ph Dist Box | Busbar Type |
| EPP DB 4030-01 | 400 × 300 × 190 | 3 Ph Dist Box | Busbar / Spring Loaded Type |
| EPP DB 4030 | 400 × 300 × 210 | 3 Ph Dist Box | Busbar / Spring Loaded Type |
| EPP DB 4537 | 450 × 375 × 200 | 3 Ph Dist Box | Busbar / Spring Loaded Type |
| EPP DB 7048 | 700 × 480 × 210 | Dist Box | For 25 KVA DTR |
| EPP DB 9045 DD | 900 × 450 × 250 | Dist Box | LT Dist Box |
| EPP DB 100100 DD | 1000 × 1000 × 325 | Dist Box | For 63 / 100 KVA DTR |
| EPP DB 130106 DD | 1305 × 1060 × 325 | Dist Box | For 200 KVA DTR |
